Home » Products » Mud Pump » Mud Pump F Series
Mud Pump
Feedback Form

Mud Pump

The F series mud pump is used for oil and gas drilling.

Technical Parameters
1. Mud Pump, F-1300 and F-1600

Rated Pressure (MPA)
Stroke Rate (RPM) Cylinder Diameter (MM) Φ180 Φ170 Φ160 Φ150 Φ140 Φ130
F-1300 18.5 20.7 23.4 26.6 30.5 34.3
F-1600 22.7 25.5 28.8 32.7 34.3 34.3
Rated Power Capacity (L/S)
F-1300 F-1600
KW (HP) KW (HP)
130 1036 (1408) 1275 (1733) 50.42 44.97 39.83 35.01 30.5 26.3
120 956 (1300) 1176 (1600) 46.54 41.51 36.77 32.32 28.15 24.27
110 876 (1192) 1078 (1467) 42.66 38.05 33.71 29.62 25.81 22.25
100 797 (1083) 980 (1333) 38.78 34.59 30.64 26.93 23.46 20.23
90 717 (975) 882 (1200) 34.9 31.13 27.58 24.24 21.11 18.21

2. Mud Pump, F-1000

Stroke Rate Cylinder Diameter (MM) and Rated Pressure (MPA)
RPM Rated Power 170 160 150 140 130 120 110
16.4 18.5 21.1 24.2 28 32.9 34.3
HP Capacity (L/S)
150 1072 43.24 38.3 33.66 29.33 25.29 21.55 18.1
140※ 1000 40.36 35.75 31.42 27.37 23.6 20.11 16.9
130 929 37.47 33.2 29.18 25.43 21.91 18.67 15.69
120 857 34.59 30.64 26.93 23.46 20.23 17.24 14.48
110 786 31.71 28.09 24.69 21.51 18.54 15.8 13.28
100 714 28.83 25.53 22.44 19.55 16.86 14.36 12.07

3. Mud Pump, F-800

Stroke Rate Liner Diameter (MM) and Rated Pressure (MPA)
RPM Rated Power 170 160 150 140 130 120 110 100
13.6 15.4 17.5 20.1 23.3 27.3 32.5 34.3
HP Capacity (L/S)
160 853 41.51 36.77 32.32 28.15 24.27 20.68 17.38 14.36
150※ 800 38.92 34.47 30.3 26.39 22.96 19.39 16.29 13.47
140 747 36.32 32.17 28.28 24.63 21.24 18.1 15.21 12.57
130 693 33.73 29.88 26.26 22.87 19.72 16.81 14.12 11.67
120 640 31.13 27.58 24.24 21.11 18.21 15.51 13.03 10.77
110 587 28.54 25.28 22.22 19.35 16.69 14.22 11.95 9.87

4. Mud Pump, F-500

Stroke Rate Rated Power Liner Diameter (MM) and Rated Pressure (MPA)
170 160 150 140 130 120 110 100
9.3 10.5 11.9 13.7 15.9 18.6 22.2 26.8
HP Capacity (L/S)
170 515 36.75 32.56 28.61 24.93 21.49 18.31 15.39 12.72
165※ 500 35.67 31.6 27.77 24.19 20.86 17.77 14.93 12.34
150 455 32.43 28.73 25.25 21.99 18.96 16.16 13.58 11.22
140 424 30.27 26.81 23.56 20.53 17.7 15.08 12.67 10.47
130 394 28.11 24.9 21.88 19.06 16.44 14 11.77 9.73
120 364 25.94 22.98 20.2 17.6 15.17 12.93 10.86 8.98
110 333 23.78 21.07 18.52 16.13 13.91 11.85 9.96 8.23

Mud Pump Model List

Bomco/ Emsco F-1300 FB-1300 F-1600 FB-1600 FA-1300 FA-1600 FC-2200 F-1000 F-800 F-500
F-350 DB-550 D-700 DA-700 D-300/500 D-375
National 7P50 8P80 9P100 10P130 12P160 14P220 N1300 C-250 E-700 G-100
K-500 K-380 K-500A K-700A C-250 C-350 JWS-400
Gardner Denver PZ7 PZ8/9 PZ10/11 FK-FXK FY-FXX FG-FXG FF-FXP KG-KXG FQ-FXQ FF-FXF
Oilwell A-560-PT A-600-PT A-850-PT A-1100-PT A-1400-PT A-1700-PT
Russian UNBT-950 UNB-600 8T-650 NBT600 UNB1180 UNBT1180L 3PN1600 E1600
Ideco T-500 T-800 T-1000 T-1300 T-1600
Wirth TPK1000 TPK1600 TPK2000
LS National 3NB-500C 3NB1000C 3NB1300C 3NB1600 3NB800 3NB1300A
Ellis E-447 E-2200
Drillmec 9T1000 12T1600
OTHER BRANNER: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS,WILSON, GASO, SKYTO, BREWSTER, WETHERFORD

Thanks for visiting this webpage. Rundong is an ISO9001 and American Petroleum Institute (API) 7K certified mud pump manufacturer, located in China. Since our establishment, we have made constant efforts to absorb and acquire advanced international technologies and production equipment. With more than 40 years efforts, all of our products are sought after by customers from Russia, Kazakhstan, Libya and other countries. Our products include cementing tool, manifold, fishing tool, and others. If you are interested in our products, please feel free to contact us. We at Rundong are looking forward to working with you.

Inquiry Form
Other Products

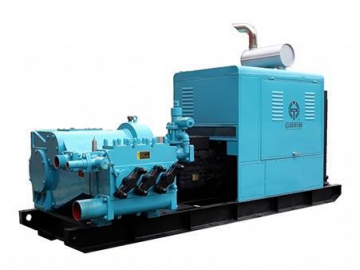

    1. Mud Pump 3NB SeriesThe 3NB series mud pump is designed to have optimized parameters, providing increased stroke and capacity. ...
    1. Plate Gate ValvePlate gate valve is a major component of production tree, tubing head, casing head, manifold, etc. Over the past few years, ...
    1. Multifunction Drilling Rig The power head of the multipurpose drilling rig is driven by low-speed high torque hydraulic motor. Stepless speed regulating can be ...

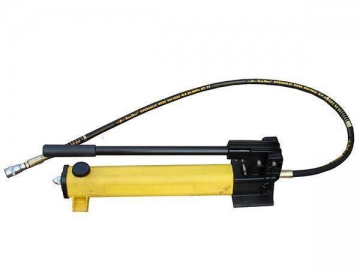

    1. Hydraulic Hand Pump SYB series hydraulic hand pump, pedal operated pump are a type of double plunger pump. High pressure and low pressure plungers ...
