Mud Gate Valve
Feedback Form

Mud Gate Valve

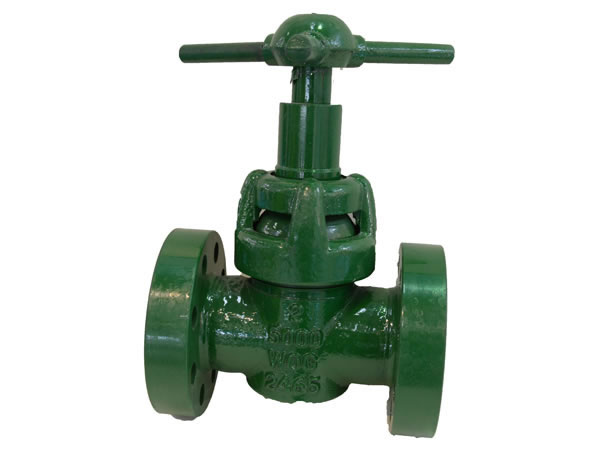

Z23X-35 Series Mud Gate Valve
Z23X-35 series mud gate valve is typically applied to mud circulating equipment in oil wells or mines, for the purpose of controlling mud flow. With trapezoidal threaded connection, the mud gate valve provides easy installation, high rigidity and safe, reliable performance. The valve seat and flashboard makes use of parallel type, elastic seal for great sealing effect and easy opening. The pipe swing, combined with O type rubber seal ring enables the valve to offer excellent seal even the two ends of the pipes do not seem in a straight line.


Parameters
Operating pressure(PMa) 2000-10000
Drift diameter 2"-5"
Working medium Mud
Material class DD-EE
Temperature class L.U
Performance level PR1-PR2
Specification level PSL1-PSL3
Model Z23X-35-DN50 Z23X-35-DN65 Z23X-35-DN80 Z23X-35-DN100
Operating pressure (Mpa) 35
Drift diameter (mm) Φ50(2-1/16") Φ65(2-9/16") Φ80(8-1/8") Φ101.6(4-1/16")
Working medium Mud
Connection type Union
Tie-in connection dimension (D) Tr120×6(Tr100×12) Tr130×6(Tr120×6) Tr150×6 Tr180×8
Length (L) 230 235 270 330

Dezhou Rundong is a China-based mud gate valve manufacturer, providing mud pump parts, oscillating screen, and more. These products feature great durability and stable performance, and are CE certified. Located in Dezhou city in Shandong province, we have easy access to low labor, material, and land costs. This is why we can provide high-quality but low cost products. If you have any questions or concerns, please contact us. The staff at Rundong is ready to help you.
