Mud Pump

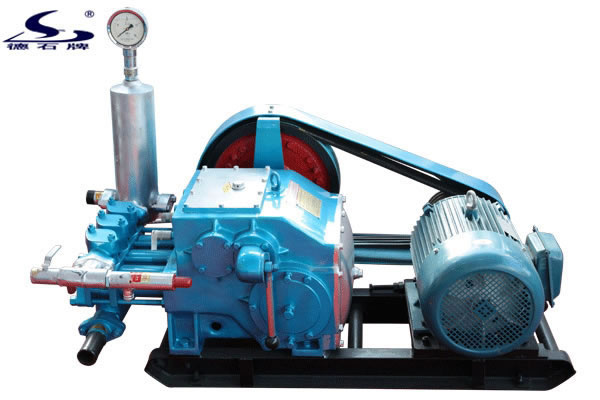

The BW series mud pump is a horizontal type, 3-cylinder, single-acting reciprocating piston pump.

1. Mud Pump, BW160/10

Parameters

Model	BW160/10
Type	Horizontal type, 3-cylinder, single movement, reciprocating piston pump
Cylinder diameter (mm)	70
Stroke (mm)	70
Speed (min-1)	200 132 83 55
Flow (1/min)	160 107 67 44
Pressure (Mpa)	2.5 4 6.5 10
Volumetric efficiency (%)	95
Total power (%)	75
Input torque (Nm)	150
Input speed (r/min)	610
Inlet diameter (mm)	51
Outlet diameter (mm)	32

2. Mud Pump, BW-250
Mud pump BW-250, which is a type of horizontal, 3-cylinder, single-acting reciprocating piston pump, comes with 2 liner diameters and 4-speed gear shift. The capacity and hole depth can be freely adjusted according to specific needs. The mud pump can be used for grout injection, in addition to working together with a drill rig with the maximum drilling depth of 1,500m. This pump is easy to move, offering low energy consumption, easy operation, great durability and high flexibility.

Parameters

Max. flow	150L/min
Max. pressure	80kg/cm2
Drive power	15kw
Inlet diameter	75mm
Outlet diameter	50mm
Drilling depth	Diamond drilling <1500
	Alloy drilling <1000
Size	1100×995×650
Weight	760kg

3. Mud Pump, BW320-Z
BW320-Z mud pump, as a kind of horizontal type, 3-cylinder, single-acting reciprocating piston pump, comes with 2 liner diameters and 4-speed gear shift. The capacity and drilling depth is freely adjustable. The pump can be used for cement injection and to work together with a drill rig with the maximum drilling depth of 1,800m.

Parameters

Max capacity	320L/min
Max pressure	100kg/cm2
Drive power	30kw
Inlet Dia.	75mm
Outlet Dia.	50mm
Drilling depth	Diamond drilling <1800
	Alloy drilling <1500
Size	1280×855×750
Weight	1000kg

4. Mud Pump, BW-450/5

Parameters

Stroke (mm)	100
Cylinder diameter (mm)	95
Speed (min)	223 168 112 86
Capacity (1/min)	450 340 240 172
Pressure (Mpa)	2 3 4 5
Volumetric efficiency (%)	92
Total power (%)	92
Required power (kw)	22
Pitch diameter of V-belt pulley (mm)	(B type×5 grooves) 410
Input speed (rpm)	500
Suction height (m)	2.5
Inlet Dia. (mm)	76 ( 3-inch wrapped pressure hose)
Outlet Dia. (mm)	76 (3-inch wrapped pressure hose)
Size (mm)	1000×995×650
Weight (kg)	520

5. Mud Pump, BW500/7

Parameters

Stroke (mm)	110
Cylinder diameter (mm)	95
Speed (min)	220 137 79 49
Capacity (l/min)	500 300 170 100
Pressure (Mpa)	1.8 2.8 4.5 7
Input torque (Nm)	335
Input speed (r/min)	511

6. BW600/10 Mud Pump

Parameters

Stroke (mm)	110
Cylinder diameter (mm)	100
Gears	High I, High II, Low I, Low II
Speed (min)	232 162 109 76
Capacity (1/min)	600 415 280 195
Pressure (Mpa)	3.5 5 7.5 10
Input power (kw)	55
Input speed (rpm)	550
Suction height (m)	2.5
Inlet diameter (mm)	Ф89
Outlet diameter (mm)	Ф51

Mud Pump Model List

Bomco/ Emsco	F-1300	FB-1300	F-1600	FB-1600	FA-1300	FA-1600	FC-2200	F-1000	F-800	F-500
	F-350	DB-550	D-700	DA-700	D-300/500	D-375
National	7P50	8P80	9P100	10P130	12P160	14P220	N1300	C-250	E-700	G-100
	K-500	K-380	K-500A	K-700A	C-250	C-350	JWS-400
Gardner Denver	PZ7	PZ8/9	PZ10/11	FK-FXK	FY-FXX	FG-FXG	FF-FXP	KG-KXG	FQ-FXQ	FF-FXF
Oilwell	A-560-PT	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
Russian	UNBT-950	UNB-600	8T-650	NBT600	UNB1180	UNBT1180L	3PN1600	E1600
Ideco	T-500	T-800	T-1000	T-1300	T-1600
Wirth	TPK1000	TPK1600	TPK2000
LS National	3NB-500C	3NB1000C	3NB1300C	3NB1600	3NB800	3NB1300A
Ellis	E-447	E-2200
Drillmec	9T1000	12T1600
OTHER BRANNER: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS,WILSON, GASO, SKYTO, BREWSTER, WETHERFORD

Rundong is an experienced Chinese BW mud pump manufacturer and supplier, established in 1970. We are involved in the development, production and sale of oil equipment, such as downhole drilling motor, power torque, and more. Our reliable quality and reasonably priced mud pump is highly sought by customers from Kazakhstan, Libya and other countries. In addition, cementing tool, valve and fishing tool, etc. are also available at Rundong. Thanks for visiting our website! If you have any questions, please feel free to contact us.
