Four-Point Contact Ball Slewing Bearing (Internal gear)

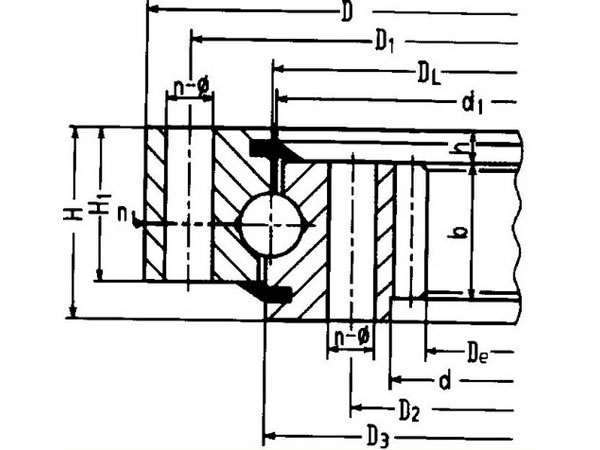

Designations (Internal gear)	Boundary dimension				Bolt hole diameter						Structure dimension				Gear parameters					Tangential force		Mass

	De	D	d	H	D1	D2	n	ф	M	n1	D3	d1	H1	h	b	m	Z	x	k	Norm- alized	QT	kg
	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm					kn	kn
013.40.900.**	739.2	1022	778	100	978	822	30	22	20	6	901	898	90	10	80	8	93	+0.5	0	80	111	252
014.40.900.**	734															10	74			100	140	252
013.40.1000.**	824	1122	878	100	1078	922	36	22	20	6	1001	998	90	10	80	10	83	+0.5	0	100	140	292
014.40.1000.**	820.8															12	69			120	167	292
013.25.1077.**	930	1169		63	1134	1017	36	18	16	6	1078	1076	54	9	54	10	94	+0.5	0	68	104	140
013.30.1120.**	960	1232		79	1188	1052	36	22	20	6	1121	1118	63	9	70	10	97	+0.5	0	88	135	206
013.40.1120.**	944	1242	998	100	1198	1042	36	22	20	6	1121	1118	90	10	80	10	95	+0.5	0	100	140	333
014.40.1120.**	940.8															12	79	+0.5		120	167	333
013.30.1250.**	1090	1362		79	1318	1182	40	22	20	8	1251	1248	63	9	70	10	110	+0.5	0	88	135	231
013.45.1250.**	1048.8	1390	1110	110	1337	1163	40	26	24	5	1252	1248	100	10	90	12	88	+0.5	0	135	188	467
014.45.1250.**	1041.6															14	75	+0.5		158	219	467
013.30.1400.**	1224	1512		89	1468	1332	44	22	20	11	1401	1398	63	9	80	12	103	+0.5	0	121	176	296
013.45.1400.**	1192.8	1540	1260	110	1487	1313	40	26	24	5	1402	1398	100	10	90	12	100	+0.5	0	135	188	529
014.45.1400.**	1195.6															14	86	+0.5		158	219	529
013.40.1500.**	1308	1634		94	1582	1418	40	26	24	8	1501	1498	81	9	85	12	110	+0.5	0	128	187	410
013.30.1600.**	1428	1712		89	1668	1532	48	22	20	8	1601	1598	63	9	80	12	120	+0.5	0	121	176	334
013.45.1600.**	1391.6	1740	1460	110	1687	1513	45	26	24	5	1602	1598	100	10	90	14	100	+0.5	0	158	219	607
014.45.1600.**	1382.4															16	87	+0.5		181	250	620
013.40.1700.**	1498	1834		94	1782	1618	44	26	24	11	1701	1698	81	9	85	14	108	+0.5	0	149	218	475
013.45.1800.**	1573.6	1940	1660	110	1887	1713	45	26	24	5	1802	1798	100	10	90	14	113	+0.5	0	158	219	721
014.45.1800.**	1574.4															16	99	+0.5		181	250	721
013.50.1800.**	1554	1971		109	1905	1695	36	33	30	9	1802	1798	99	9	100	14	112	+0.5	0		257	762
013.50.2000.**	1764	2171		109	1895	1895	40	33	30	8	2002	1998	99	9	100	14	127	+0.5	0		257	827
013.60.2000.**	1734.4	2178	1825	144	2110	1891	48	33	30	8	2002	1998	132	12	120	16	109	+0.5	0	241	333	1265
014.60.2000.**	1735.2															18	97			271	375	1265
013.50.2240.**	1984	2411		109	2345	2135	48	33	30	8	2242	2238	99	9	100	16	125	+0.5	0		294	961
013.60.2240.**	1990.4	2418	2065	144	2350	2131	48	33	30	8	2242	2238	132	12	120	16	125	+0.5	0	241	333	1393
014.60.2240.**	1987.2															18	111	+0.5		271	375	1393
013.50.2490.**	2240	2661		109	2595	2385	54	33	30	9	2492	2488	99	9	100	16	141	+0.5	0		294	1053
013.60.2500.**	2239.2	2678	2325	144	2610	2391	56	33	30	8	2502	2498	132	12	120	18	125	+0.5	0	271	375	1580
014.60.2500.**	2228															20	112	+0.5		301	418	1580
013.50.2800.**	2544	2971		109	2905	2652	60	33	30	12	2802	2798	99	9	100	16	160	+0.5	0		294	1205
013.60.2800.**	2527.2	2978	2625	144	2910	2691	56	33	30	8	2802	2798	132	12	120	18	141	+0.5	0	271	375	1800
014.60.2800.**	2528															20	127	+0.5		301	418	1800
013.75.3150.**	2828	3376	2922	174	3286	3014	56	45	42	8	3152	3147	162	12	150	20	142	+0.5	0	377	522	2840
014.75.3150.**	2824.8															22	129	+0.5		415	574	2840
013.75.3350.**	3020	3576	3122	174	3486	3214	56	45	42	8	3348	3353	162	12	150	20	152	+0.5	0			3000
014.75.3350.**	3014															22	138	+0.5
013.75.3550.**	3220	3376	3322	174	3686	3414	56	45	42	8	3352	3547	162	12	150	20	162	+0.5	0			3200
014.75.3550.**	3212															22	147	+0.5	0			3200
013.75.3800.**	3460	4026	3572	174	3936	3664	56	45	42	8	3798	3803	162	12	150	20	174	+0.5	0			3400
014.75.3800.**	3454															22	158	+0.5
013.75.4000.**	3652	4226	3772	174	4136	3864	60	45	42	10	4002	3997	162	12	150	22	167	+0.5	0			3600
014.75.4000.**	3650															25	147	+0.5	0			3600
013.75.4300.**	3960	4526	4072	174	4436	4164	60	45	42	10	4298	4303	162	12	150	22	181	+0.5	0			3800
014.75.4300.**	3950															25	159	+0.5
013.75.4500.**	4158	4726	4272	174	4636	4364	60	45	42	10	4502	4497	162	12	150	22	190	+0.5	0			4000
014.75.4500.**	4150															25	167	+0.5	0			4000
