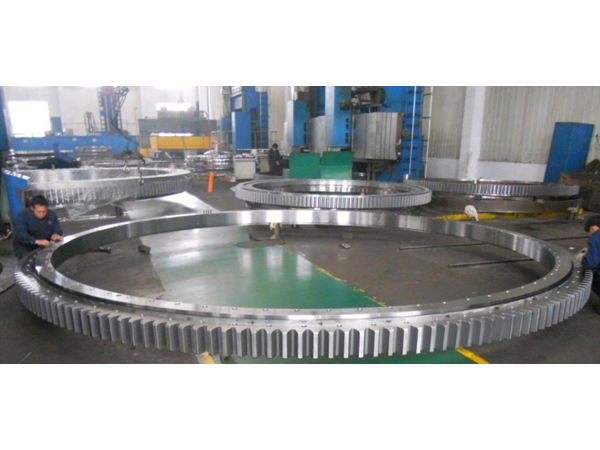

| Designations (External gear) |
Boundary dimension |
Bolt hole diameter | Structure dimension | Gear parameters | Tangential force |
Mass | |||||||||||||||
| De | d | H | D1 | D2 | n | ф | M | n1 | D3 | d1 | H1 | h | b | m | Z | x | k | Normal | Max | kg | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kn | kn | |||||||||
| 221.32.3550.** | 3772.8 | 3358 | 159 | 3638 | 3418 | 76 | 30 | 27 | 10 | 3591 | 3509 | 143 | 50 | 109 | 16 | 232 | +1.0 | 0.1 | 160 | 320 | 2028 |
| 221.32.3750.** | 3980.8 | 3558 | 159 | 3846 | 3618 | 80 | 30 | 27 | 10 | 3791 | 3709 | 143 | 50 | 109 | 16 | 246 | +0.5 | 0.1 | 160 | 320 | 2186 |
| 221.32.4000.** | 4220.8 | 3808 | 159 | 4086 | 3868 | 84 | 30 | 27 | 12 | 4041 | 3959 | 143 | 50 | 109 | 16 | 261 | +0.5 | 0.1 | 160 | 320 | 2278 |
| 221.32.4250.** | 4476.8 | 4058 | 159 | 4342 | 4118 | 90 | 30 | 27 | 12 | 4291 | 4209 | 143 | 50 | 109 | 16 | 276 | +1.0 | 0.1 | 160 | 320 | 2455 |
| 221.36.4000.** | 4244.4 | 3792 | 175 | 4095 | 3858 | 76 | 33 | 30 | 12 | 4045 | 3955 | 159 | 50 | 125 | 18 | 232 | +1.0 | 0.1 | 196 | 391 | 2792 |
| 221.36.4250.** | 4496.4 | 4042 | 175 | 4347 | 4108 | 80 | 33 | 30 | 12 | 4295 | 4205 | 159 | 50 | 125 | 18 | 247 | +0.5 | 0.1 | 196 | 391 | 2981 |
| 221.36.4500.** | 4748.4 | 4292 | 175 | 4599 | 4358 | 84 | 33 | 30 | 14 | 4545 | 4455 | 159 | 50 | 125 | 18 | 261 | +0.5 | 0.1 | 196 | 391 | 3171 |
| 221.36.4750.** | 5000.4 | 4542 | 175 | 4851 | 4608 | 90 | 33 | 30 | 14 | 4795 | 4705 | 159 | 50 | 125 | 18 | 275 | +0.5 | 0.1 | 196 | 391 | 3363 |
| 221.40.4500.** | 4776 | 4276 | 183 | 4612 | 4348 | 72 | 36 | 33 | 14 | 4550 | 4450 | 167 | 50 | 133 | 20 | 236 | +0.5 | 0.1 | 231 | 463 | 3673 |
| 221.40.4750.** | 5016 | 4526 | 183 | 4852 | 4598 | 76 | 36 | 33 | 14 | 4800 | 4700 | 167 | 50 | 133 | 20 | 248 | +0.5 | 0.1 | 231 | 463 | 3796 |
