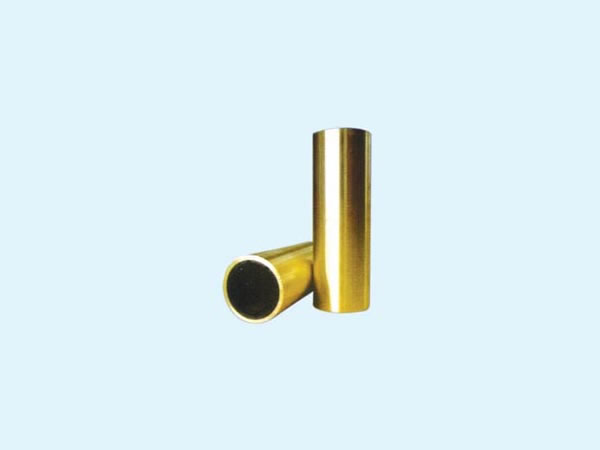

CB769-86 Rubber Marine Cutless Bearing

Bearing diameter	Outside diameter of copper bushing (D1)	Length (L)
Nominal size	Nominal size	Normal type	Extended type
40	64	120	140
45	68	135	155
50	74	150	170
55	78	150	170
60	84	165	210
65	88	180	230
70	96	190	250
75	102	210	270
80	108	220	290
85	114	240	300
90	120	250	320
95	125	260	340
100	130	280	350
105	137	290	370
110	144	300	385
120	156	330	420
125	163	340	440
130	170	360	450
140	182	380	480
150	194	410	520
160	206	440	550
170	218	460	580
180	228	500	620
190	238	520	650
200	250	550	680
