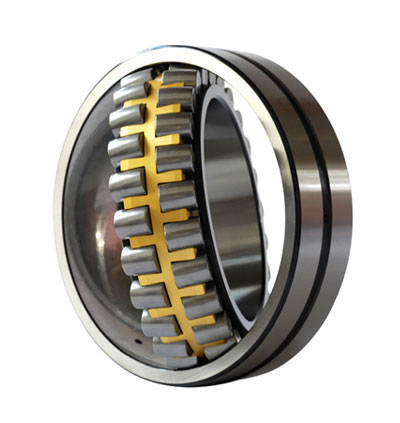

Brass Cage Spherical Roller Bearing

Principal Dimensions(mm)			Designation	Basic Load ratings		Limited Speed(rpm)		Weight (kg )
d	D	B		Dynamic load	Static load	Grease	Oil
30	62	20	22206CA	33.5	38	5000	6800	0.295
35	72	23	22207CA	46	59	4400	5800	0.45
40	80	23	22208CA	49.5	69	3900	5200	0.536
40	90	33	22308CA	84	106	2900	4000	1.04
45	85	23	22209CA	52	73.2	3600	4800	0.6
45	100	36	22309CA	105	140	2700	3600	1.42
50	90	23	22210CA	57.2	80	3300	4400	0.64
50	110	40	22310CA	130	170	2400	3100	1.88
55	100	25	22211CA	74	98	3000	4000	0.85
55	120	43	22311CA	155	205	2200	2700	2.43
60	110	28	22212CA	94	129	2800	3700	1.18
60	130	46	22312CA	175	230	1900	2600	3.01
65	120	31	22213CA	110	156	2600	3500	1.61
65	140	48	22313CA	180	240	1800	2500	3.53
70	125	31	22214CA	116	160	2400	3200	1.7
70	150	51	22314CA	210	300	1700	2300	4.35
75	130	31	22215CA	119	170	2300	3000	1.77
75	160	55	22315CA	250	355	1600	2100	5.51
80	140	33	22216CA	128	488	2200	2900	2.194
80	170	58	22316CA	285	405	1500	2000	6.56
85	150	36	22217CA	159	233	2000	2600	2.74
85	180	60	22317CA	310	442	1400	1900	7.42
90	160	40	22218CA	185	280	1900	3400	3.48
90	190	64	22318CA	358	522	1300	2400	8.88
95	170	43	22219CA	200	300	1800	2300	4.35
95	200	67	22319CA	376	546	1250	1600	10.4
100	180	46	22220CA	235	355	1700	2200	5.12
100	215	73	22320CA	444	651	1100	1500	13.3
110	200	53	22222CA	297	482	1500	2000	7.68
110	240	80	22322CA	526	768	110	1500	18.24
120	215	58	22224CA	352	587	1400	1900	9.065
130	230	64	22226CA	618	834	1100	1400	23.412
140	210	69	24028CA	475	875	1700	2200	8.36
140	225	68	23128CA	532	867	1700	2200	11
140	250	68	22228K	635	890	1700	2200	14.8
140	250	68	22228CA	640	950	1700	2200	15.8
140	250	88	23228CA	805	1253	1200	1600	18.8
140	300	102	22328CA	1128	1534	1100	1500	36
150	225	56	23030CA	446	763	1700	2200	7.73
150	250	80	23130CA	743	1232	1400	1800	17.3
150	270	73	22230CA	725	1048	1600	2000	18
150	270	96	23230CA	953	1522	1100	1500	18.7
150	320	108	22330CA	1300	1713	1000	1400	43.8
160	240	60	23032CA	495	841	1700	2200	9.74
160	240	80	24032CA	650	1180	1100	1500	13
160	270	86	23132CA	798	1288	1300	1700	20.5
160	270	109	24132CA	1008	1730	700	900	24
160	290	80	22232CA	838	1220	1500	1900	22.5
160	290	80	22232CAK	838	1220	1500	1900	22
160	290	104	23232CA	1100	1765	1000	1400	35.7
160	340	114	22332CA	1375	1872	950	1300	51.1
170	260	67	23034CA	570	1030	1600	2000	13.6
170	280	88	23134CA	864	1423	1200	1600	22.1
170	280	109	23134CAK	993	1656	670	850	26.5
170	310	86	22234CA	1100	1430	1300	1700	39.2
170	310	110	23234CA	1180	1830	950	1300	37.6
170	360	120	22334	1480	2125	950	1300	58.6
170	360	136	-	1660	2450	670	850	71.7
180	280	74	23036CA	765	1250	1400	1800	17.5
180	280	74	23036CAK	765	1250	1400	1800	17.2
180	280	100	24036CA/W33	914	1665	9501100	1300	22.8
180	300	96	23136CA	1000	1701	1100	1500	25.9
180	300	96	23136CAK	1000	1701	630	1500	25
180	300	118	24136CA	1169	2036	1300	800	32.8
180	320	86	22236CA	993	1493	1300	700	32.3
180	320	86	22236CAK	993	1493	1300	1700	31.6
180	320	112	23236CA	1269	2048	900	1200	42.8
180	380	126	22336CA	1686	2412	900	1200	72.6
190	280	67	-	610	1070	1300	1700	14.7
190	290	75	23038CA	740	1395	1300	1700	18.1
190	290	100	24038CA/W33	940	1740	950	1300	23.8
190	320	128	24138CAK/W33	1355	24330	600	750	42.1
190	340	92	22238CA	1097	1643	1200	1600	40.7
190	340	92	22238CAK	1097	1643	1200	1600	40.3
190	340	120	23238CA	1455	2410	850	1100	48.3
190	400	132	22338CA	1820	2600	850	1100	83.2
200	310	82	23040CA	900	1610	1200	1600	24.1
200	340	140	24140CA	1482	2634	560	700	52.3
200	360	98	22240CA	1260	2000	1100	1500	43.9
200	360	98	22240CAK	1260	2000	1100	1500	43.3
200	360	128	23240CA	1630	2680	850	1100	57.9
200	360	128	23240CAK	1630	2680	850	1100	56
200	420	138	22340CAK	1870	2730	850	1100	89.5
220	340	90	23044CAK	1025	1900	1100	1500	30.8
220	370	120	23144CA	1470	2460	900	1200	54.4
220	370	120	23144CAK	1470	2460	900	1200	54.1
220	400	108	22244CAK	1480	2230	950	1300	59.5
220	460	145	22344CA	2315	3400	750	950	118.8
240	360	92	23048CA	1100	2150	1000	1400	34
240	360	118	24048CAK	1370	2680	800	1000	45.1
240	400	128	23148CA	1685	3000	850	1100	66.4
240	400	128	23148CAK	1685	3000	850	1100	64.3
240	400	160	24148CA	2050	2770	480	600	91.4
240	440	120	22248CAK	1815	2865	900	1200	83
240	440	160	23248CAK/W33	2385	3985	670	850	111.5
240	500	155	22348CA	2700	4000	430	530	149
260	360	75	23952CA	860	1670	1100	1500	23.3
260	400	104	23052CA	1410	2560	900	1200	48.7
260	440	144	23152CA	2130	3780	800	1000	93.2
260	440	180	24152CA	2405	4375	430	530	109
260	480	130	22252CA	2170	3420	850	1100	106
260	480	130	22252CAK	2170	3420	850	1100	104
260	480	174	23252CA	2795	4690	630	800	149
260	480	174	23252CAK	2795	4690	630	800	145
280	540	165	22352CA	2950	4480	630	800	186
280	380	75	23956CA	830	1650	1000	1400	25
280	420	106	23056CA	1510	2860	850	1100	52.7
280	420	106	23056CAK	1510	2860	850	1100	52
280	460	146	23156CA	2320	4230	750	950	404.5
280	460	146	23156CAK	2320	4230	750	950	101.3
280	460	180	24156CA	2510	4625	400	500	120
280	460	130	-	2110	3565	750	950	88
280	460	150	-	2420	4220	750	950	103
280	500	130	22256CA	2140	2450	800	1000	108
280	500	130	22256CAK	2140	2450	800	1000	107
280	580	175	22356CA	2450	5250	600	750	228
300	460	118	23060CA	1800	3300	800	1000	72.7
300	460	160	24060CA	2315	4640	600	750	94.7
300	500	160	23160CA	2630	4730	670	850	135
300	500	160	23060CAK	2630	4730	670	850	131
300	500	200	24160CA	3060	5740	530	670	159
300	500	200	24160CAK	3060	5740	530	670	157
300	540	150	22260CA/W33	2630	4220	750	950	148
300	540	192	23260CA	3270	5620	530	670	202
300	580	185	22360CAX1	3400	5510	500	630	229
320	480	121	23064CA	1920	3690	800	1000	78.8
320	480	121	23064CAK	1920	3690	800	1000	76.4
320	480	160	24064CA	2360	4830	560	700	107
320	480	160	24064CAK	2360	4830	560	700	105.7
320	540	176	23164CA	3150	5730	630	800	175
320	540	176	23164CAK	3150	5730	630	800	170
320	540	218	24164CA	3645	6930	500	630	208
320	580	208	23264CA	3830	6650	500	630	253
320	580	208	23264CAK	3830	6650	500	630	244
320	620	198	-	3970	6420	450	560	278
340	520	133	23068CA	2200	4200	700	900	99.7
340	520	133	23068CAK	2200	4200	700	900	96.6
340	520	180	24068CAK	2780	5720	530	670	138
340	580	190	23168CA	3560	6420	600	750	213
340	580	190	23168CAK	3560	6420	600	750	208
360	480	90	23972CA	1240	2765	850	1100	46
360	540	134	23072CA	2330	4570	670	850	111
360	540	134	23072CAK	2330	4570	670	850	108
360	540	180	24072CA	2930	6120	560	700	143
360	600	243	24172CAK	4300	8350	450	560	287
360	620	224	23272CAF	4220	7910	450	560	288
360	650	232	23272CAK	4600	8115	400	500	280
360	750	224	22372CA	5640	8990	400	500	492
380	560	135	23076CA	2380	4800	630	800	115
380	560	135	23076CAK	2380	4800	630	800	111
380	560	180	24076CA	2990	6570	480	600	160
380	620	194	23176CAK	3680	7200	400	500	242
400	600	148	23080CA	2850	5600	600	750	155
400	600	148	23080CAK	2850	5600	600	750	146
400	600	200	24080CA	3520	7530	450	560	202
400	650	200	23180CAK	3820	7650	380	480	270
420	560	106	23984CA	1830	3470	600	750	73.5
420	620	200	24084CA	3780	8210	380	480	210
420	620	200	24084CAK	3780	8210	380	480	207
420	700	224	23184CA	4950	9360	360	450	355
420	760	272	23284CAK	6025	11190	320	400	531
440	720	226	23188CA	5095	9870	340	430	364
440	790	280	23288CA	7110	13170	300	380	610
460	760	240	23192CA	5520	10580	320	400	451
460	830	296	23292CAK	7310	13760	300	280	695
480	870	310	23296CA	8210	15400	260	340	801
500	720	167	230/500CA	3425	7215	380	480	A219
500	720	167	230/500CAK	3425	7215	380	480	212
500	920	336	232/500CA	9200	17000	280	360	1014
530	780	250	240/530CA	5440	12100	300	380	410
560	820	195	230/560CA	4840	10480	320	410	365
560	920	280	231/560CA	7500	14800	240	320	756
600	870	200	230/600CA	5110	11100	300	380	412
600	870	200	230/600CAK	5110	11100	300	380	400
600	980	375	241/600CA	10450	22000	110	150	1127
630	920	212	230/630CA	5850	12440	260	340	495
670	980	230	230/670CAK	6320	13700	240	320	609
710	1150	438	241/710CA	12830	28800	280	1810
750	1090	250	230/750CA	6960	16530	200	280	810
800	1150	258	230/800CA	7540	16630	170	220	888
850	1220	272	230/850CA	9130	21080	160	200	1064
1180	1660	355	230/1180CA	14420	35880	110	150	2460
1000	1580	580	241/1000CA
280	420	140	24056
220	400	144	23244
260	400	140	24052
