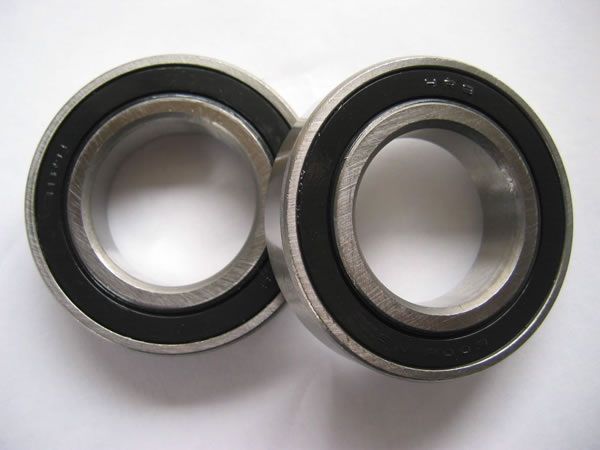

Deep Groove Ball Bearing

Home » Products » Bearing » Deep Groove Ball Bearing

Part No.	Bore(d) mm in.	Outer Diameter(D) mm in.	Width(B) mm in.	Radius(r) mm in.	Limiting Speeds rpm Grease Oil	Basic Load Ratings(KN) Dynamic Static	Weight (KG)
6000	10 0.3937	26 1.0236	8 0.3150	0.3 0.012	29000 34000	4.55 1.96	0.019
6001	12 0.4724	28 1.1024	8 0.3150	0.3 0.012	26000 30000	5.10 2.39	0.021
6002	15 0.5906	32 1.2598	9 0.3543	0.3 0.012	22000 26000	5.60 2.84	0.030
6003	17 0.6693	35 1.3780	10 0.3937	0.3 0.024	20000 24000	6.80 3.35	0.039
6409	45 1.7717	120 4.7244	29 1.1417	2.0 0.079	6300 7400	77.38 45.38	1.521
6410	50 1.9685	130 5.1181	31 1.2208	2.1 0.083	5700 6700	92.29 55.13	1.855
6411	55 2.1654	140 5.5118	33 1.2992	2.1 0.083	5200 6100	100.67 62.45	2.316
6412	60 2.3622	150 5.9055	35 1.3780	2.1 0.083	4800 5700	109.11 70.06	2.811
