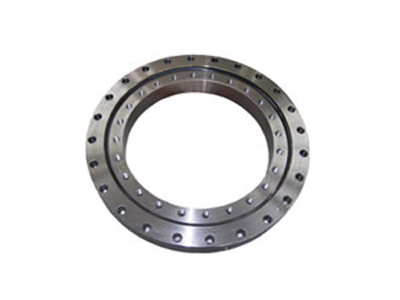

Slewing Bearing

Home » Products » Bearing » Slewing Bearing

No.	Basic Type			Overall Dimension			Installation Dimension				Structural Dimension					Gear Parameter			External Gear Parameter		Internal Gear Parameter		Circumferential Force of Gear		Reference Weight (kg)
	Toothless DL mm	External Toothing DL mm	Internal Toothing DL mm	D mm	d mm	H mm	D1 mm	D2 mm	n	Φ mm	n1	D3 mm	d1 mm	H1 mm	h	b mm	x	m mm	De mm	Z	De mm	Z	Normalizing Z 104 N	Tempering T 104 N
1	010.20.200	011.20.200	_	280	120	60	248	152	12	16	2	201	199	50	10	40	0	3	300	98	_	_	_	_	_
2	010.20.224	011.20.224	_	304	144	60	272	176	12	16	2	225	223	50	10	40	0	3	312	105	_	_	_	_	_
3	010.20.250	011.20.250	_	330	170	60	298	202	18	16	2	251	249	50	10	40	0	4	352	86	_	_	_	_	_
4	010.20.280	011.20.280	_	360	200	60	328	232	18	16	2	281	279	50	10	40	0	4	384	94	_	_	_	_	_
5	010.25.315	011.25.315	013.25.315	408	222	70	372	258	20	18	2	316	314	60	10	50	0	5	435	85	190	40	2.9_	_4.4	_
6	010.25.355	011.25.355	013.25.355	448	262	70	412	298	20	18	2	356	354	60	10	50	0	5	475	93	235	49	_2.9	_4.4	_
7	010.25.400	011.25.400	013.25.400	493	307	70	457	343	20	18	2	401	399	60	10	50	0	6	528	86	276	48	_3.5	_5.3	_
8	010.25.450	011.25.450	013.25.450	543	357	70	507	393	20	18	2	451	449	60	10	50	0	6	576	94	324	56	_3.5	_5.3	_
9	010.30.500	011.30.500	013.30.500	602	398	80	566	434	20	18	4	501	498	70	10	60	+0.5	5	629	123	367	74	3.7	5.2	89
		012.30.500	014.30.500															6	628.8	102	368.4	62	4.5	6.2
9'	010.25.500	011.25.500	013.25.500	602	398	80	566	434	20	18	4	501	499	70	10	60	+0.5	5	629	123	367	74	3.7	5.2	89
		012.25.500	014.25.500															6	628.8	102	368.4	62	4.5	6.2
10	010.30.560	011.30.560	013.30.560	662	458	80	626	494	20	18	4	561	558	70	10	60	+0.5	5	689	135	427	86	3.7	5.2	100
		012.30.560	014.30.560															6	688.8	112	428.4	72	4.5	6.2
10'	010.25.560	011.25.560	013.25.560	662	458	80	626	494	20	18	4	561	558	70	10	60	+0.5	5	689	135	427	86	3.7	5.2	100
		012.25.560	014.25.560															6	688.8	112	428.4	72	4.5	6.2
11	010.30.630	011.30.630	013.30.630	732	528	80	696	564	24	18	4	631	628	70	10	60	+0.5	6	772.8	126	494.4	83	4.5	6.2	118
		012.30.630	014.30.630															8	774.4	94	491.2	62	6.0	8.3
11'	010.25.630	011.25.630	013.25.630	732	528	80	696	564	24	18	4	631	629	70	10	60	+0.5	6	772.8	126	494.4	83	4.5	6.2	118
		012.25.630	014.25.630															8	774.4	94	491.2	62	6.0	8.3
12	010.30.710	011.30.710	013.30.710	812	608	80	776	644	24	18	4	711	708	70	10	60	+0.5	6	850.8	139	572.4	96	4.5	6.2	131
		012.30.710	014.30.710															8	854.4	104	571.2	72	6.0	8.3
12'	010.25.710	011.25.710	013.25.710	812	608	80	776	644	24	18	4	711	708	70	10	60	+0.5	6	850.8	139	572.4	96	4.5	6.2	131
		012.25.710	014.25.710															8	854.4	104	571.2	72	6.0	8.9
13	010.40.800	011.40.800	013.40.800	922	678	100	878	722	30	22	6	801	798	90	10	80	+0.5	8	966.4	118	635.2	80	8.0	11.1	220
		012.40.800	014.40.800															10	968	94	634	64	10.0	14.0
13'	010.30.800	011.30.800	013.30.800	922	678	100	878	722	30	22	6	801	798	90	10	80	+0.5	8	966.4	118	635.2	80	8.0	11.1	220
		012.30.800	014.30.800															10	968	94	634	64	10.0	14.0
14	010.40.900	011.40.900	013.40.900	1022	778	100	978	822	30	22	6	901	898	90	10	80	+0.5	8	1062.4	130	739.2	93	8.0	11.1	240
		012.40.900	014.40.900															10	1068	104	734	74	10.0	14.0
14'	010.30.900	011.30.900	013.30.900	1022	778	100	978	822	30	22	6	901	898	90	10	80	+0.5	8	1062.4	130	739.2	93	8.0	11.1	240
		012.30.900	014.30.900															10	1068	104	734	74	10.0	14.0
15	010.40.1000	011.40.1000	013.40.1000	1122	878	100	1078	922	36	22	6	1001	998	90	10	80	+0.5	10	1188	116	824	83	10.0	14.0	270
		012.40.1000	014.40.1000															12	1185.6	96	820.8	69	12.0	16.7
15'	010.30.1000	011.30.1000	013.30.1000	1122	878	100	1078	922	36	22	6	1001	998	90	10	80	+0.5	10	1188	116	824	83	10.0	14.0	270
		012.30.1000	014.30.1000															12	1185.6	96	820.8	69	12.0	16.7
16	010.40.1120	011.40.1120	013.40.1120	1242	998	100	1198	1042	36	22	6	1121	1118	90	10	80	+0.5	10	1298	127	944	95	10.0	14.0	300
		012.40.1120	014.40.1120															12	1305.6	106	940.8	79	12.0	16.7
16'	010.30.1120	011.30.1120	013.30.1120	1242	998	100	1198	1042	36	22	6	1121	1118	90	10	80	+0.5	10	1298	127	944	95	10.0	14.0	300
		012.30.1120	014.30.1120															12	1305.6	106	940.8	79	12.0	16.7
17	010.45.1250	011.45.1250	013.45.1250	1390	1110	110	1337	1163	40	26	5	1252	1248	100	10	90	+0.5	12	1449.6	118	1048.8	88	13.5	18.8	420
		012.45.1250	014.45.1250															14	1453.2	101	1041.6	75	15.8	21.9
17'	010.35.1250	011.35.1250	013.35.1250	1390	1110	110	1337	1163	40	26	5	1251	1248	100	10	90	+0 .5	12	1449.6	118	1048.8	88	13.5	18.8	420
		012.35.1250	014.35.1250															14	1453.2	101	1041.6	75	15.8	21.9
18	010.45.1400	011.45.1400	013.45.1400	1540	1260	110	1487	1313	40	26	5	1402	1398	100	10	90	+0.5	12	1605.6	131	1192.8	100	13.5	18.8	480
		012.45.1400	014.45.1400															14	1607.2	112	1195.6	86	15.5	21.9
18'	010.35.1400	011.35.1400	013.35.1400	1540	1260	110	1487	1313	40	26	5	1401	1398	100	10	90	+0 .5	12	1605.6	131	1192.8	100	13.5	18.8	480
		012.35.1400	014.35.1400															14	1607.2	112	1195.6	86	15.8	21.9
19	010.45.1600	011.45.1600	013.45.1600	1740	1460	110	1687	1513	45	26	5	1602	1598	100	10	90	+0 .5	14	1817.2	127	1391.6	100	15.8	21.9	550
		012.45.1600	014.45.1600															16	1820.8	111	1382.4	87	18.1	25.0
19'	010.35.1600	011.35.1600	013.35.1600	1740	1460	110	1687	1513	45	26	5	1601	1598	100	10	90	+0.5	14	1817.2	127	1391.6	100	15.8	21.9	550
		012.35.1600	014.35.1600															16	1820.8	111	1382.4	87	18.1	25.0
20	010.45.1800	011.45.1800	013.45.1800	1940	1660	110	1887	1713	45	26	5	1802	1798	100	10	90	+0.5	14	2013.2	141	1573.6	113	15.8	21.9	610
		012.45.1800	014.45.1800															16	2012.8	123	1574.4	99	18.1	25.0
20'	010.35.1800	011.35.1800	013.35.1800	1940	1660	110	1887	1713	45	26	5	1801	1798	100	10	90	+0.5	14	2013.2	141	1573.6	113	15.8	21.	610
		012.35.1800	014.35.1800															16	2012.8	123	1574.4	99	18.1	25.0
21	010.60.2000	011.60.2000	013.60.2000	2178	1825	144	2110	1891	48	33	8	2002	1998	132	12	120	+0.5	16	2268.8	139	1734.4	109	24.1	33.3	1100
		012.60.2000	014.60.2000															18	2264.4	123	1735.2	97	27.1	37.5
21'	010.40.2000	011.40.2000	013.40.2000	2178	1825	144	2110	1891	48	33	8	2001	1998	132	12	120	+0.5	16	2268.8	139	1734.4	109	24.1	33.3	1100
		012.40.2000	014.40.2000															18	2264.4	123	1735.2	97	27.1	37.5
22	010.60.2240	011.60.2240	013.60.2240	2418	2065	144	2350	2131	48	33	8	2242	2238	132	12	120	+0.5	16	2492.8	153	1990.4	125	24.1	33.3	1250
		012.60.2240	014.60.2240															18	2498.4	136	1987.2	111	27.1	37.5
22'	010.40.2240	011.40.2240	013.40.2240	2418	2065	144	2350	2131	48	33	8	2241	2238	132	12	120	+0.5	16	2492.8	153	1990.4	125	24.1	33.3	1250
		012.40.2240	014.40.2240															18	2498.4	136	1987.2	111	27.1	37.5
23	010.60.2500	011.60.2500	013.60.2500	2678	2325	144	2610	2391	56	33	8	2502	2498	132	12	120	+0.5	18	2768.4	151	2239.2	125	27.1	37.5	1400
		012.60.2500	014.60.2500															20	2776	136	2228	112	30.1	41.8
23'	010.40.2500	011.40.2500	013.40.2500	2678	2325	144	2610	2391	56	33	8	2501	2498	132	12	120	+0.5	18	2768.4	151	2239.2	125	27.1	37.5	1400
		012.40.2500	014.40.2500															20	2776	136	2228	112	30.1	41.8
24	010.60.2800	011.60.2800	013.60.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	18	3074.4	168	2527.2	141	27.1	37.5	1600
		012.60.2800	014.60.2800															20	3076	151	2528	127	30.1	41.8
24'	010.40.2800	011.40.2800	013.40.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	18	3074.4	168	2527.2	141	27.1	37.5	1600
		012.40.2800	014.40.2800															20	3076	151	2528	127	30.1	41.8
25	010.75.3150	011.75.3150	013.75.3150	3376	2922	174	3286	3014	56	45	8	3152	3147	162	12	150	+0.5	20	3476	171	2828	142	37.7	52.2	2800
		012.75.3150	014.75.3150															22	3471.6	155	2824.8	129	41.5	57
25	010.50.3150	011.50.3150	013.50.3150	3376	2922	174	3286	3014	56	45	8	3152	3148	162	12	150	+0.5	20	3476	171	2828	142	37.7	52.2	2800
		012.50.3150	014.50.3150															22	3471.6	155	2824.8	129	41.5	57
26	010.75.3550	011.75.3550	013.75.3550	3776	3322	174	3686	3014	60	45	8	3552	3547	162	12	150	+0.5	20	3876	191	3228	162	37.7	51.7	3500
		012.75.3550	014.75.3550															22	3889.6	174	3220.8	147	41.5	57
26	010.50.3550	011.50.3550	013.50.3550	3776	3322	174	3686	3014	60	45	8	3552	3548	162	12	150	+0.5	20 22	3876 3889.6	191 174	3228 3220.8	162 147	37.7	51.7	3500
		012.50.3550	014.50.3550
																		22	3889.6	174	3220.8	147	41.5	57
27	010.75.4000	011.75.4000	013.75.4000	4226	3772	174	4136	3864	60	45	10	4002	3997	162	12	150	+0.5	22	4329.6	194	3660.8	167	41.5	57	4200
		012.75.4000	014.75.4000															25	4345	171	3660	147	47.1	64.6
27	010.50.4000	011.50.4000	013.50.4000	4226	3772	174	4136	3864	60	45	10	4002	3998	162	12	150	+0.5	22	4329.6	194	3660.8	167	41.5	57	4200
		012.50.4000	014.50.4000															25	4345	171	3660	147	47.1	64.6
28	010.75.4500	011.75.4500	013.75.4500	4726	4272	174	4636	4364	60	45	10	4502	4497	162	12	150	+0.5	22	4835.6	217	4166.8	190	41.5	57	5100
		012.75.4500	014.75.4500
																		25	4845	191	4160	167	47.1	64.6
28	010.50.4500	011.50.4500	013.50.4500	4726	4272	174	4636	4364	60	45	10	4502	4498	162	12	150	+0.5	22	4835.6	217	4166.8	190	41.5	57	5100
		012.50.4500	014.50.4500															25	4845	191	4160	167	47.1	64.6
