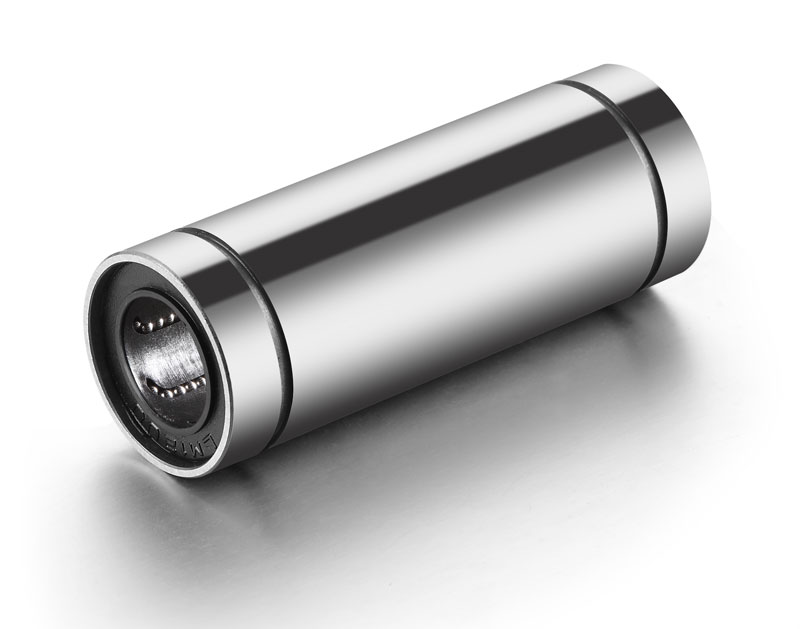

LM-LUU Metric Linear Bearing

Nominal shaft dia. mm	Long type LM...LUU	Ball circuit	Major dimensions and tolerance(T)										Eccentricity µM	Basic load rating		Weight (gf)
			mm	dr	mm	D	mm	L	mm	B	W mm	D1 mm		Basic load rating
			mm	T μm	mm	T μm	mm	T μm	mm	T μm	W mm	D1 mm		Dynamic C N	Static Co N
6	LM6LUU	4	6	0 -10	12	0 -13	35	0 -300	27	0 -300	1.1	11.5	15	323	530	16
8	LM8LUU	4	8		15	0 -13	45		35		1.1	14.3		431	784	31
10	LM10LUU	4	10		19	0 -16	55		44		1.3	18		588	1100	62
12	LM12LUU	4	12		21		57		46		1.3	20		813	1570	80
13	LM13LUU	4	13		23		61		46		1.3	22		813	1570	90
16	LM16LUU	5	16		28		70		53		1.6	27		1230	2350	145
20	LM20LUU	5	20	0 -12	32	0 -19	80		61		1.6	30.5	20	1400	2740	180
25	LM25LUU	6	25		40		112	0 -400	82	0 -400	1.85	38		1560	3140	440
30	LM30LUU	6	30		45		123		89		1.85	43		2490	5490	480
35	LM35LUU	6	35	0 -15	52	0 -22	135		99		2.1	49	25	2650	6270	795
40	LM40LUU	6	40		60		151		121		2.1	57		3430	8040	1170
50	LM50LUU	6	50		80		192		148		2.6	76.5		6080	15900	3100
60	LM60LUU	6	60	0 -20	90	0 -25	209		170		3.15	86.5	30	7550	20000	3500
